Use this guide to add a Yealink W76P wireless phone and provision it for you with NocTel

Adding a Yealink Extension

  1. From the control panel, click on Extensions.
  2. Then click on the Add a New Extension link.
  3. The following screen will present a selection of extension types. Locate the Yealink Device and click Add Device.
  4. Enter the device's MAC address from the base unit in the Device MAC field.
  5. Give the new extension a number and name in the provided fields.
  6. Click Submit.

Provisioning a Yealink Extension

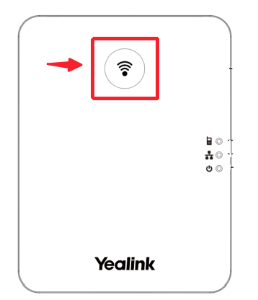

  1. Connect the Yealink base to power and an active network connection.
  2. On the handset, press OK (center arrow pad) > Status > Base. Scroll down and note the IPv4 address.
  3. In a browser, navigate to the IP address.
  4. Login with the default username (admin) and default password (admin)
  5. Navigate to Setting > Auto Provision
  6. Set the Server URL to https://noctel.com
  7. Click the Auto Provision Now button.


Handset PIN

The default handset PIN is 0000
